AS250A-300
Fully-Auto Horizontal Stretch Wrapper
Special Designed Chain Conveyor

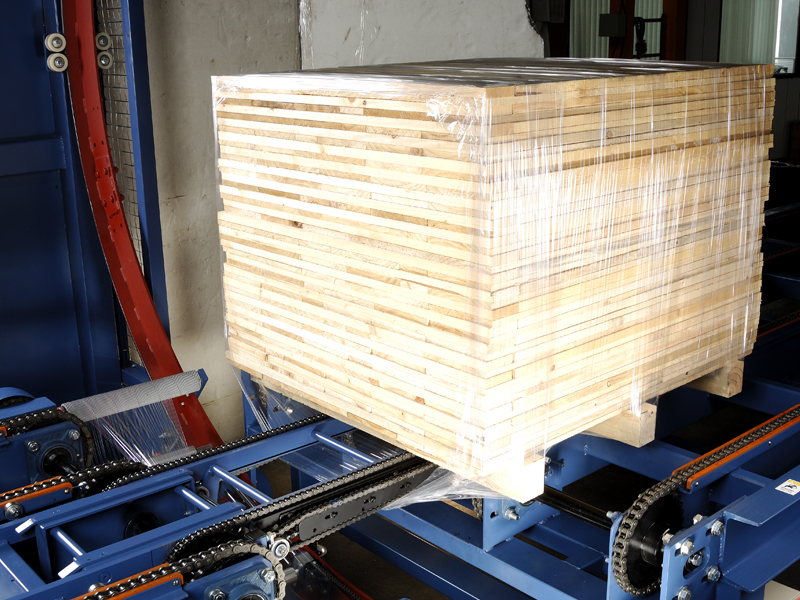

Pallet Can Be Replaced by Wooden Stick For Cost Saving
Photo Sensor Control Start and Stop
Fully-Auto Working Without Operator
Control by Touch Panel (Pro-Face) With Mitsubishi PLC
Complete Function With 10 Sets Memory Program
Auto Film Cutting And Clamping
Complete Function With Adjustable Wrapping Speed For Varied Places
Option: Stretch And Strap Packaging At The Same Time
AS250A-300 Fully-Auto Horizontal Stretch Wrapper
newWindow
newWindow
newWindow
newWindow
newWindow



Feature

　

.  AC motor with inverter driven rotation unit.
.  Numbers of wrapping adjustable from 0 – 9.
.  Mechanical break roller to adjust film tension.
.  Adjustable rotation and conveyor speed.

.  Three wrapping modes – continuously/single/middle reinforce.

.  Photo sensor controls wrapping start and stop.

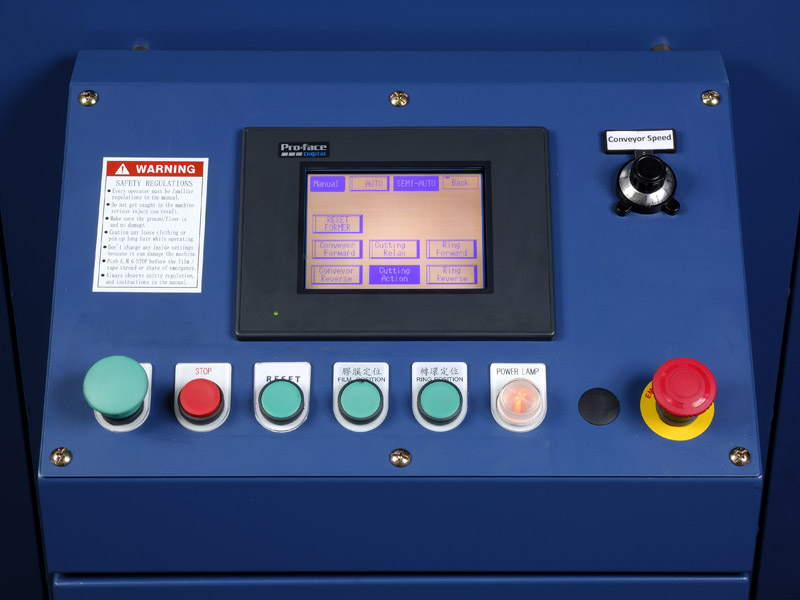

.  Control by touch panel (Pro-Face) with Mitsubishi PLC.

.  Complete function with 10 sets memory program.

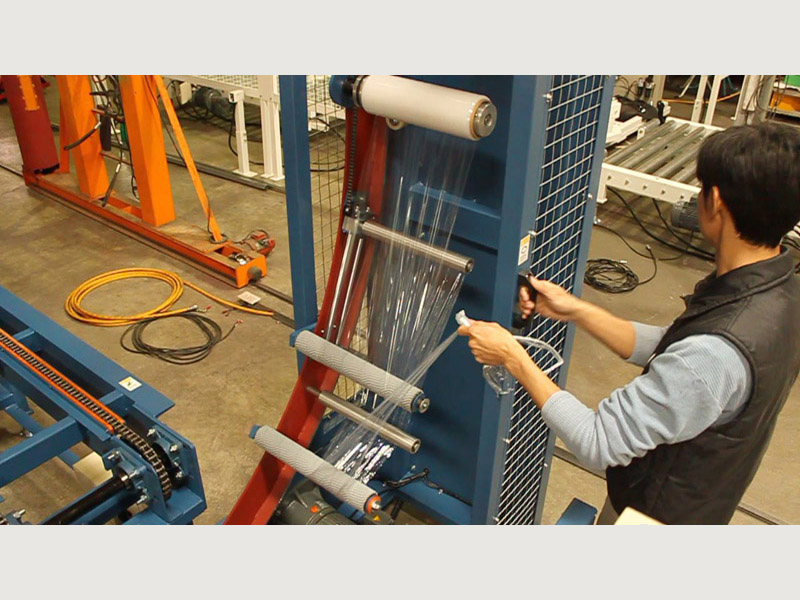

.  Auto film cutting and clamping.

.  With film saving dancing bar for big wrapping range.

.  Heavy duty chain conveyor with 4 tracks.

.  Separate rotating rings for easier shipment loading.
.  Options:

    1. Pneumatic Top Pressure Roller

    2. Inline with Strapping Machine or Pallet Wrapper

    3. Power Roller Conveyor

    4. 6 Sides Wrapping With Plastic Bag in Front and Rear Sides

    5. Short Object Wrapping

    6. Special Belt Conveyor for Pallet Wrapping









AS250A-300 Fully-Auto Horizontal Stretch Wrapper Operation







AS SERIES FULLY-AUTO HORIZONTAL WRAPPER APPLIED FILM



Film Spec. AS-40A AS-70A AS-140A AS-180A AS-250A
125MM (W) x ∮200MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 S.T.D S.T.D - - -
300MM (W) x ∮250MM (Max. Dia.)
Inner Core: 76MM(3")
Film Thickness: 17 ~ 30 um		 - S.T.D S.T.D S.T.D S.T.D







● Option: Film Spec. 500MM (W) x ∮250MM (Max. Dia.) Inner Core: 76MM(3")



WRAPPING SPEED OF AS SERIES FULLY-AUTO HORIZONTAL WRAPPER



  Max. Rotation Speed Max. Conveyor Speed Conveyor Belt Width Min. Wrapping Length
Film: 125mm(Width)
AS40A-125 90RPM 10M/Min 250mm 400mm
AS70A-125 60RPM 7M/Min 400mm 400mm
Film: 300mm(Width)
AS70A-300 60RPM 18M/Min 400mm 1,000mm
AS140A-300 40RPM 12M/Min 1,000mm 1,000mm
AS180A-300 30RPM 9M/Min 1,200mm 1,000mm
AS250A-300 25RPM 7M/Min Custom Spec. Custom Spec.







Machine Power:

  1. 1 Phase , 110V / 220V , 50 / 60Hz
  2. 3 Phase , 220V / 380V , 50 / 60Hz





Options:

  • Pneumatic Top Pressure Roller
  • Inline with Strapping Machine
  • Power Roller Conveyor
  • 6 Sides Wrapping With Plastic Bag in Front and Rear Sides
  • Short Object Wrapping
  • Special Chain Conveyor for Pallet Wrapping
